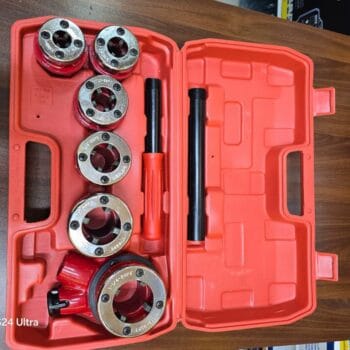

Heavy Duty Ratchet Die Stock 1/2 to 2 inch

A ratchet die stock

is a specialized tool used to cut threads onto metal rods or pipes. It’s particularly useful for threading in confined spaces or when working overhead, as it allows for continuous cutting without the need to remove and reposition the tool. More

Key Components:

• Main Body: A sturdy frame that holds the die and provides a handle for operation.
• Ratchet Mechanism: A built-in ratchet mechanism allows for forward rotation only, ensuring consistent thread cutting.
• Die: The cutting tool that creates the thread. Dies are typically interchangeable, allowing the stock to be used for various thread sizes.
• Handle: A lever or grip for turning the die stock.

How it Works:

1. Insert the Die: The appropriate die for the desired thread size is inserted into the die stock.
2. Position and Clamp: The die stock is positioned on the workpiece, and the die is clamped onto the material.
3. Rotate: The handle is turned, causing the die to rotate and cut the thread. The ratchet mechanism prevents the die from turning backward, ensuring continuous cutting.
4. Repeat: The process is repeated until the desired thread length is achieved.

Advantages of Using a Ratchet Die Stock:

• Efficiency: The ratchet mechanism allows for faster and more efficient threading.
• Convenience: Ideal for working in tight spaces or overhead.
• Versatility: Interchangeable dies allow for cutting various thread sizes.
• Accuracy: Precise thread cutting can be achieved with proper technique.

Common Applications:

• Plumbing: Threading pipes for fittings.
• Automotive Repair: Creating custom threads on car parts.
• Machining: Threading metal rods and shafts.
• General Fabrication: Various metalworking and construction applications.

Safety Considerations:

• Always wear appropriate safety gear, including eye protection and gloves.
• Ensure the workpiece is securely clamped to prevent it from spinning.
• Use caution when working with sharp tools.
• Follow the manufacturer’s instructions for proper use and maintenance.

By understanding the functionality and safety considerations of a ratchet die stock, you can effectively use this tool for various threading tasks.
